Obsolete iceScrum documention (R6#14+) This documentation applies only to old iceScrum R6. For new iceScrum v7, click here.

Contents

Continuous integration (CI) plays an important role in agile development. iceScrum Pro integrates build information from your CI server so you don’t have to leave iceScrum in order to check that your builds pass. This integration also allows traceability between stories and the builds in which they are implemented.

Principles

iceScrum Pro provides a generic data structure to store build information. It is sent by a CI server through the iceScrum Web Services API. For Jenkins/Hudson, we provide a plugin that does that automatically.

Builds, jobs and project
Builds, tasks and stories
Configuration

Builds, jobs and project

Build information is sent when your CI server constructs your application by following instructions described in a job.

Build information mainly describes the build name, number, date, job and status. When sent to iceScrum, build information must be associated with a project (you can associate several jobs with a project). iceScrum Pro knows that builds belong to the same job according to the job name that is provided.

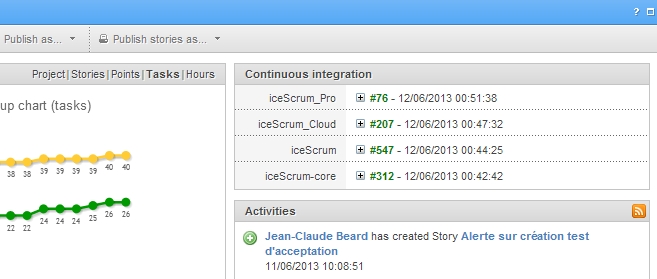

The Dashboard displays the latest build information for each job associated with the project. On the left, the job name is displayed. The build name color depends on the build status. You will get more information by hovering over it.

Builds, tasks and stories

Within a project, build information can optionally be associated with one or many tasks. Then, the “+” button allows expanding it to display the associated tasks. If these tasks belongs to stories then they are also displayed.

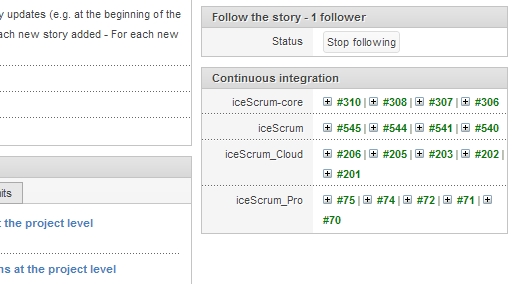

Build information is also displayed in task and story details views according to this association. Unlike the dashboard information which displays only the latest build per job, all the associated builds are displayed.

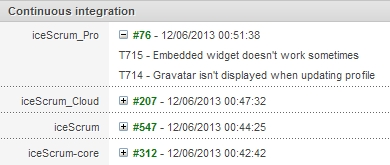

The Jenkins/Hudson plugin include tasks in build information if they are found in commit messages according to this pattern: T<taskUID>[-<taskEstimation>]. This pattern is the one we defined for SCM integration. Consequently, if you already use this iceScrum Pro feature, builds will be associated with your tasks automatically.

Configuration

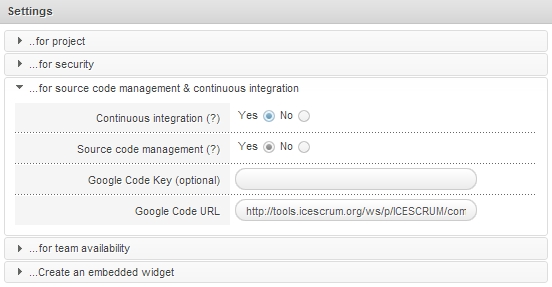

There is no particular configuration on your iceScrum server, just be sure that CI integration is enabled in your project settings (it is disabled by default). Because they are required, Web Services are enabled automatically when you enable CI integration.

Plugins

This section describes how to configure the integration with your CI server. For the moment, only a Jenkins plugin is available. If you would like to have a new plugin developed by our team, please contact us. Let us know if you want to develop it on your own so we may consider making it available for everybody.

Jenkins/Hudson plugin

Jenkins/Hudson plugin

If you use Jenkins, you can install the iceScrum plugin directly from the Manage Jenkins > Manage Plugins menu. You will find it under the Available tab (it is named iceScrum plugin). Choose Download now and install after restart.

If you use Hudson, you will have to install the plugin manually. Download the latest icesrum.hpi file into the $HUDSON_HOME/plugins directory and restart Hudson.

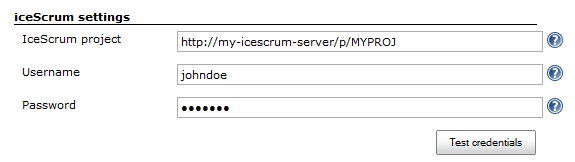

Once your Jenkins server is restarted, you can configure the connection to iceScrum Pro in the iceScrum settings panel of your job configuration. You must enter credentials of a user who is in your team. Then, enter your project URL:

http://:server/p/:pkey

If you use iceScrum Pro Cloud, the URL will be:

https://www.icescrum.com/a/p/:pkey

Before going further, check you credentials with the Test credentials button. Then, add the iceScrum post-build action that will send your build data to your iceScrum server.

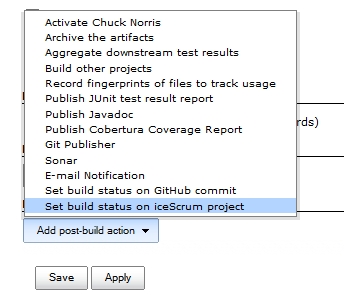

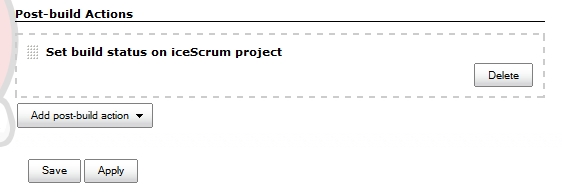

If you have multiple jobs for your iceScrum project, don’t forget to add the post-build action to all of them. Then, the plugin will automatically send build data to your iceScrum project for each build that includes commits with the iceScrum task naming pattern.

Web Services API

Build Web Services are available only if CI integration and Web Services are enabled on the project. Please refer to the main iceScrum API documentation for more information.

Get all builds
Get the latest build for each job
Get all builds for the given story
Get all builds for the given task
Create a build
Get a build
Update a build
Delete a build

Get all builds

GET http://:server/ws/p/:pkey/build


[
    {
        "id": 1,
        "builtOn": "Jenkins: 1.516",
        "date": "2013-06-01T02:21:03Z",
        "jobName": "iceScrum",
        "name": "#533",
        "number": 533,
        "product": {
            "id": 1
        },
        "status": 1,
        "tasks": [
            {
                "id": 1246
            },
            {
                "id": 1245
            }
        ],
        "url": "http://tools.icescrum.org/jenkins/job/iceScrum/533"
    },
    {
        "id": 2,
        "builtOn": "Jenkins: 1.516",
        "date": "2013-06-01T02:26:52Z",
        "jobName": "iceScrum",
        "name": "#534",
        "number": 534,
        "product": {
            "id": 1
        },
        "status": 1,
        "tasks": [
            {
                "id": 1246
            },
            {
                "id": 1245
            }
        ],
        "url": "http://tools.icescrum.org/jenkins/job/iceScrum/534"
    },
    {
        "id": 3,
        "builtOn": "Jenkins: 1.516",
        "date": "2013-06-02T20:34:07Z",
        "jobName": "iceScrum-core",
        "name": "#305",
        "number": 305,
        "product": {
            "id": 1
        },
        "status": 1,
        "tasks": [
            {
                "id": 1254
            }
        ],
        "url": "http://tools.icescrum.org/jenkins/job/iceScrum-core/305"
    },
    {
        "id": 4,
        "builtOn": "Jenkins: 1.516",
        "date": "2013-06-02T20:35:26Z",
        "jobName": "iceScrum",
        "name": "#538",
        "number": 538,
        "product": {
            "id": 1
        },
        "status": 1,
        "tasks": [
            {
                "id": 1254
            }
        ],
        "url": "http://tools.icescrum.org/jenkins/job/iceScrum/538"
    },
    {
        "id": 5,
        "builtOn": "Jenkins: 1.516",
        "date": "2013-06-02T20:38:01Z",
        "jobName": "iceScrum_Cloud",
        "name": "#200",
        "number": 200,
        "product": {
            "id": 1
        },
        "status": 1,
        "tasks": [
            {
                "id": 1254
            }
        ],
        "url": "http://tools.icescrum.org/jenkins/job/iceScrum_Cloud/200"
    },
    {
        "id": 6,
        "builtOn": "Jenkins: 1.516",
        "date": "2013-06-02T20:41:00Z",
        "jobName": "iceScrum_Pro",
        "name": "#69",
        "number": 69,
        "product": {
            "id": 1
        },
        "status": 1,
        "tasks": [
            {
                "id": 1254
            }
        ],
        "url": "http://tools.icescrum.org/jenkins/job/iceScrum_Pro/69"
    },
    {
        "id": 13,
        "builtOn": "Jenkins: 1.516",
        "date": "2013-06-03T02:01:09Z",
        "jobName": "iceScrum",
        "name": "#539",
        "number": 539,
        "product": {
            "id": 1
        },
        "status": 1,
        "tasks": [],
        "url": "http://tools.icescrum.org/jenkins/job/iceScrum/539"
    },
    {
        "id": 14,
        "builtOn": "Jenkins: 1.516",
        "date": "2013-06-04T00:42:04Z",
        "jobName": "iceScrum-core",
        "name": "#306",
        "number": 306,
        "product": {
            "id": 1
        },
        "status": 1,
        "tasks": [
            {
                "id": 1170
            }
        ],
        "url": "http://tools.icescrum.org/jenkins/job/iceScrum-core/306"
    },
    {
        "id": 15,
        "builtOn": "Jenkins: 1.516",
        "date": "2013-06-04T00:43:34Z",
        "jobName": "iceScrum",
        "name": "#540",
        "number": 540,
        "product": {
            "id": 1
        },
        "status": 1,
        "tasks": [
            {
                "id": 1170
            }
        ],
        "url": "http://tools.icescrum.org/jenkins/job/iceScrum/540"
    }
]


<?xml version="1.0" encoding="UTF-8"?>
<list>
   <build id="1">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-01 02:21:03.0 UTC</date>
      <jobName>iceScrum</jobName>
      <name>#533</name>
      <number>533</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1246" />
         <task id="1245" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum/533</url>
   </build>
   <build id="2">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-01 02:26:52.0 UTC</date>
      <jobName>iceScrum</jobName>
      <name>#534</name>
      <number>534</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1246" />
         <task id="1245" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum/534</url>
   </build>
   <build id="3">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-02 20:34:07.0 UTC</date>
      <jobName>iceScrum-core</jobName>
      <name>#305</name>
      <number>305</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1254" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum-core/305</url>
   </build>
   <build id="4">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-02 20:35:26.0 UTC</date>
      <jobName>iceScrum</jobName>
      <name>#538</name>
      <number>538</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1254" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum/538</url>
   </build>
   <build id="5">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-02 20:38:01.0 UTC</date>
      <jobName>iceScrum_Cloud</jobName>
      <name>#200</name>
      <number>200</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1254" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum_Cloud/200</url>
   </build>
   <build id="6">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-02 20:41:00.0 UTC</date>
      <jobName>iceScrum_Pro</jobName>
      <name>#69</name>
      <number>69</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1254" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum_Pro/69</url>
   </build>
   <build id="13">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-03 02:01:09.0 UTC</date>
      <jobName>iceScrum</jobName>
      <name>#539</name>
      <number>539</number>
      <product id="1" />
      <status>1</status>
      <tasks />
      <url>http://tools.icescrum.org/jenkins/job/iceScrum/539</url>
   </build>
   <build id="14">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-04 00:42:04.0 UTC</date>
      <jobName>iceScrum-core</jobName>
      <name>#306</name>
      <number>306</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1170" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum-core/306</url>
   </build>
   <build id="15">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-04 00:43:34.0 UTC</date>
      <jobName>iceScrum</jobName>
      <name>#540</name>
      <number>540</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1170" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum/540</url>
   </build>
</list>

Get the latest build for each job

You will get the same builds as displayed on the project dashboard.

GET http://:server/ws/p/:pkey/build/latest

[
   {
      "id": 42,
      "builtOn": "Jenkins: 1.516",
      "date": "2013-06-12T00:51:38Z",
      "jobName": "iceScrum_Pro",
      "name": "#76",
      "number": 76,
      "product": {
         "id": 1
      },
      "status": 1,
      "tasks": [
         {
            "id": 1261
         },
         {
            "id": 1260
         }
      ],
      "url": "http://tools.icescrum.org/jenkins/job/iceScrum_Pro/76"
   },
   {
      "id": 41,
      "builtOn": "Jenkins: 1.516",
      "date": "2013-06-12T00:47:32Z",
      "jobName": "iceScrum_Cloud",
      "name": "#207",
      "number": 207,
      "product": {
         "id": 1
      },
      "status": 1,
      "tasks": [
         {
            "id": 1261
         },
         {
            "id": 1260
         }
      ],
      "url": "http://tools.icescrum.org/jenkins/job/iceScrum_Cloud/207"
   },
   {
      "id": 40,
      "builtOn": "Jenkins: 1.516",
      "date": "2013-06-12T00:44:25Z",
      "jobName": "iceScrum",
      "name": "#547",
      "number": 547,
      "product": {
         "id": 1
      },
      "status": 1,
      "tasks": [
         {
            "id": 1261
         }
      ],
      "url": "http://tools.icescrum.org/jenkins/job/iceScrum/547"
   },
   {
      "id": 39,
      "builtOn": "Jenkins: 1.516",
      "date": "2013-06-12T00:42:42Z",
      "jobName": "iceScrum-core",
      "name": "#312",
      "number": 312,
      "product": {
         "id": 1
      },
      "status": 1,
      "tasks": [
         {
            "id": 1261
         }
      ],
      "url": "http://tools.icescrum.org/jenkins/job/iceScrum-core/312"
   }
]

<?xml version="1.0" encoding="UTF-8"?>
<list>
   <build id="42">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-12 00:51:38.0 UTC</date>
      <jobName>iceScrum_Pro</jobName>
      <name>#76</name>
      <number>76</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1261" />
         <task id="1260" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum_Pro/76</url>
   </build>
   <build id="41">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-12 00:47:32.0 UTC</date>
      <jobName>iceScrum_Cloud</jobName>
      <name>#207</name>
      <number>207</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1261" />
         <task id="1260" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum_Cloud/207</url>
   </build>
   <build id="40">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-12 00:44:25.0 UTC</date>
      <jobName>iceScrum</jobName>
      <name>#547</name>
      <number>547</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1261" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum/547</url>
   </build>
   <build id="39">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-12 00:42:42.0 UTC</date>
      <jobName>iceScrum-core</jobName>
      <name>#312</name>
      <number>312</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1261" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum-core/312</url>
   </build>
</list>

Get all builds for the given story

GET http://:server/ws/p/:pkey/build/story/:storyId


[
    {
        "id": 3,
        "builtOn": "Jenkins: 1.516",
        "date": "2013-06-02T20:34:07Z",
        "jobName": "iceScrum-core",
        "name": "#305",
        "number": 305,
        "product": {
            "id": 1
        },
        "status": 1,
        "tasks": [
            {
                "id": 1254
            }
        ],
        "url": "http://tools.icescrum.org/jenkins/job/iceScrum-core/305"
    },
    {
        "id": 4,
        "builtOn": "Jenkins: 1.516",
        "date": "2013-06-02T20:35:26Z",
        "jobName": "iceScrum",
        "name": "#538",
        "number": 538,
        "product": {
            "id": 1
        },
        "status": 1,
        "tasks": [
            {
                "id": 1254
            }
        ],
        "url": "http://tools.icescrum.org/jenkins/job/iceScrum/538"
    },
    {
        "id": 5,
        "builtOn": "Jenkins: 1.516",
        "date": "2013-06-02T20:38:01Z",
        "jobName": "iceScrum_Cloud",
        "name": "#200",
        "number": 200,
        "product": {
            "id": 1
        },
        "status": 1,
        "tasks": [
            {
                "id": 1254
            }
        ],
        "url": "http://tools.icescrum.org/jenkins/job/iceScrum_Cloud/200"
    },
    {
        "id": 6,
        "builtOn": "Jenkins: 1.516",
        "date": "2013-06-02T20:41:00Z",
        "jobName": "iceScrum_Pro",
        "name": "#69",
        "number": 69,
        "product": {
            "id": 1
        },
        "status": 1,
        "tasks": [
            {
                "id": 1254
            }
        ],
        "url": "http://tools.icescrum.org/jenkins/job/iceScrum_Pro/69"
    },
    {
        "id": 1,
        "builtOn": "Jenkins: 1.516",
        "date": "2013-06-01T02:21:03Z",
        "jobName": "iceScrum",
        "name": "#533",
        "number": 533,
        "product": {
            "id": 1
        },
        "status": 1,
        "tasks": [
            {
                "id": 1246
            },
            {
                "id": 1245
            }
        ],
        "url": "http://tools.icescrum.org/jenkins/job/iceScrum/533"
    },
    {
        "id": 2,
        "builtOn": "Jenkins: 1.516",
        "date": "2013-06-01T02:26:52Z",
        "jobName": "iceScrum",
        "name": "#534",
        "number": 534,
        "product": {
            "id": 1
        },
        "status": 1,
        "tasks": [
            {
                "id": 1246
            },
            {
                "id": 1245
            }
        ],
        "url": "http://tools.icescrum.org/jenkins/job/iceScrum/534"
    }
]

 <?xml version="1.0" encoding="UTF-8"?>
<list>
   <build id="3">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-02 20:34:07.0 UTC</date>
      <jobName>iceScrum-core</jobName>
      <name>#305</name>
      <number>305</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1254" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum-core/305</url>
   </build>
   <build id="4">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-02 20:35:26.0 UTC</date>
      <jobName>iceScrum</jobName>
      <name>#538</name>
      <number>538</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1254" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum/538</url>
   </build>
   <build id="5">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-02 20:38:01.0 UTC</date>
      <jobName>iceScrum_Cloud</jobName>
      <name>#200</name>
      <number>200</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1254" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum_Cloud/200</url>
   </build>
   <build id="6">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-02 20:41:00.0 UTC</date>
      <jobName>iceScrum_Pro</jobName>
      <name>#69</name>
      <number>69</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1254" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum_Pro/69</url>
   </build>
   <build id="1">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-01 02:21:03.0 UTC</date>
      <jobName>iceScrum</jobName>
      <name>#533</name>
      <number>533</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1245" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum/533</url>
   </build>
   <build id="2">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-01 02:26:52.0 UTC</date>
      <jobName>iceScrum</jobName>
      <name>#534</name>
      <number>534</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1245" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum/534</url>
   </build>
</list>

Get all builds for the given task

GET http://:server/ws/p/:pkey/build/task/:taskId


[
    {
        "id": 1,
        "builtOn": "Jenkins: 1.516",
        "date": "2013-06-01T02:21:03Z",
        "jobName": "iceScrum",
        "name": "#533",
        "number": 533,
        "product": {
            "id": 1
        },
        "status": 1,
        "tasks": [
            {
                "id": 1245
            }
        ],
        "url": "http://tools.icescrum.org/jenkins/job/iceScrum/533"
    },
    {
        "id": 2,
        "builtOn": "Jenkins: 1.516",
        "date": "2013-06-01T02:26:52Z",
        "jobName": "iceScrum",
        "name": "#534",
        "number": 534,
        "product": {
            "id": 1
        },
        "status": 1,
        "tasks": [
            {
                "id": 1245
            }
        ],
        "url": "http://tools.icescrum.org/jenkins/job/iceScrum/534"
    }
]


<?xml version="1.0" encoding="UTF-8"?>
<list>
   <build id="1">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-01 02:21:03.0 UTC</date>
      <jobName>iceScrum</jobName>
      <name>#533</name>
      <number>533</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1246" />
         <task id="1245" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum/533</url>
   </build>
   <build id="2">
      <builtOn>Jenkins: 1.516</builtOn>
      <date>2013-06-01 02:26:52.0 UTC</date>
      <jobName>iceScrum</jobName>
      <name>#534</name>
      <number>534</number>
      <product id="1" />
      <status>1</status>
      <tasks>
         <task id="1246" />
         <task id="1245" />
      </tasks>
      <url>http://tools.icescrum.org/jenkins/job/iceScrum/534</url>
   </build>
</list>

Create a build

POST http://:server/ws/p/:pkey/build

Input

build.builtOn: Optional - Name and version of CI server
build.date: Required - Timestamp or ISO 8601 format
build.jobName: Required - Name of the job in your CI server (e.g. myapp)
build.name: Required
build.number: Required integer
build.status: Required integer - 1: success, 5: failed, 10: error
build.tasks: Optional array of number - Array of task UID
build.url: Required

Be careful if you provide tasks. The API expects an array of UID whereas the API usually deals with technical IDs. Additionally, it expects a raw array of numbers rather than the array of task objects you will get in response. Thus, there is a significant inconsistency between what you submit and what you get from the API. This issue will be fixed in a major API refactoring where all technical IDs will be replaced by UIDs.


{
    "id": 3,
    "builtOn": "Jenkins: 1.516",
    "date": "2013-06-02T20:34:07Z",
    "jobName": "iceScrum-core",
    "name": "#305",
    "number": 305,
    "product": {
        "id": 1
    },
    "status": 1,
    "tasks": [
        {
            "id": 1254
        }
    ],
    "url": "http://tools.icescrum.org/jenkins/job/iceScrum-core/305"
}


<?xml version="1.0" encoding="UTF-8"?>
<build id="3">
   <builtOn>Jenkins: 1.516</builtOn>
   <date>2013-06-02 20:34:07.0 UTC</date>
   <jobName>iceScrum-core</jobName>
   <name>#305</name>
   <number>305</number>
   <product id="1" />
   <status>1</status>
   <tasks>
      <task id="1254" />
   </tasks>
   <url>http://tools.icescrum.org/jenkins/job/iceScrum-core/305</url>
</build>

Get a build

GET http://:server/ws/p/:pkey/build/:id


{
    "id": 3,
    "builtOn": "Jenkins: 1.516",
    "date": "2013-06-02T20:34:07Z",
    "jobName": "iceScrum-core",
    "name": "#305",
    "number": 305,
    "product": {
        "id": 1
    },
    "status": 1,
    "tasks": [
        {
            "id": 1254
        }
    ],
    "url": "http://tools.icescrum.org/jenkins/job/iceScrum-core/305"
}


<?xml version="1.0" encoding="UTF-8"?>
<build id="3">
   <builtOn>Jenkins: 1.516</builtOn>
   <date>2013-06-02 20:34:07.0 UTC</date>
   <jobName>iceScrum-core</jobName>
   <name>#305</name>
   <number>305</number>
   <product id="1" />
   <status>1</status>
   <tasks>
      <task id="1254" />
   </tasks>
   <url>http://tools.icescrum.org/jenkins/job/iceScrum-core/305</url>
</build>

Update a build

PUT http://:server/ws/p/:pkey/build/:id

Input

build.builtOn: Optional - Name and version of CI server
build.date: Required - Timestamp or ISO 8601 format
build.jobName: Required - Name of the job in your CI server (e.g. myapp)
build.name: Required
build.number: Required integer
build.status: Required integer - 1: success, 5: failed, 10: error
build.url: Required


{
    "id": 3,
    "builtOn": "Jenkins: 1.516",
    "date": "2013-06-02T20:34:07Z",
    "jobName": "iceScrum-core",
    "name": "#305",
    "number": 305,
    "product": {
        "id": 1
    },
    "status": 1,
    "tasks": [
        {
            "id": 1254
        }
    ],
    "url": "http://tools.icescrum.org/jenkins/job/iceScrum-core/305"
}


<?xml version="1.0" encoding="UTF-8"?>
<build id="3">
   <builtOn>Jenkins: 1.516</builtOn>
   <date>2013-06-02 20:34:07.0 UTC</date>
   <jobName>iceScrum-core</jobName>
   <name>#305</name>
   <number>305</number>
   <product id="1" />
   <status>1</status>
   <tasks>
      <task id="1254" />
   </tasks>
   <url>http://tools.icescrum.org/jenkins/job/iceScrum-core/305</url>
</build>

Delete a build

DELETE http://:server/ws/p/:pkey/build/:id

Previous << Embedded widgets

Next Cloud storage (R6) >>

Obsolete iceScrum documention (R6#14+) This documentation applies only to old iceScrum R6. For new iceScrum v7, click here.

1 - Install & Upgrade guide (R6)

2 - Getting started (R6)

3 - Features (R6)

4 - Integrations (R6)

Slack (R6)

IntelliJ IDEA

LDAP / Active Directory (R6)

Git & SVN (R6)

Embedded widgets

Continuous integration (R6)

Cloud storage (R6)

Bug trackers (R6)

5 - REST API (R6)

Principles

Builds, jobs and project

Builds, tasks and stories

Configuration

Plugins

Jenkins/Hudson plugin

Web Services API

Get all builds

Get the latest build for each job

Get all builds for the given story

Get all builds for the given task

Create a build

Input

Get a build

Update a build

Input

Delete a build

Try it for free now
All you need for your Agile project management

iceScrum

Documentation

Resources

About

Obsolete iceScrum documention (R6#14+) This documentation applies only to old iceScrum R6. For new iceScrum v7, click here.

4 - Integrations (R6)

Principles

Builds, jobs and project

Builds, tasks and stories

Configuration

Plugins

Jenkins/Hudson plugin

Web Services API

Get all builds

Get the latest build for each job

Get all builds for the given story

Get all builds for the given task

Create a build

Input

Get a build

Update a build

Input

Delete a build

Try it for free now All you need for your Agile project management

iceScrum

Documentation

Resources

About

Try it for free now
All you need for your Agile project management
